2-Pin CCFL Extender/

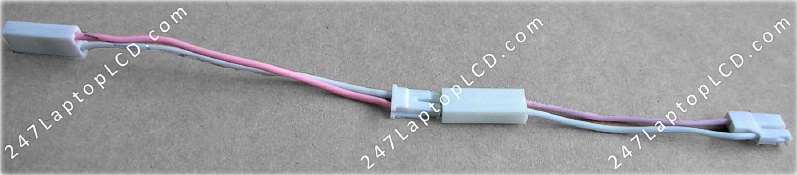

The image below shows a regular LCD without a 2-pin CCFL extension cable. If the cable length runs short in establishing connection, the following picture illustrates the use of 2-pin CCFL extender to overcome this problem.



Converting a 2-pin symmetrical connection to asymmetrical connection

Laptop screens come with different lamp connectors depending upon the inverter design. In case you have received a Laptop LCD screen with a symmetrical 2-pin CCFL lamp connector as shown in Figure 1. and if your original LCD has asymetrical 2-pin CCFL lamp connector as shown in Figure 2, then we will send you adapter to convert your symmetrical connection to asymetrical lamp connection.

Please make sure that the connection between the adapter and the connector plug are tightly secured to avoid electrical surge.

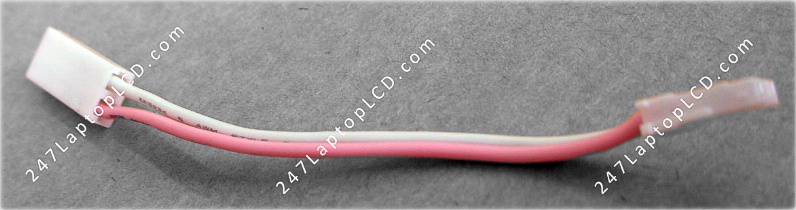

Figure 1. Symmetrical 2 Pin CCFL Connector (Standard)

Figure 2. Asymetrical CCFL Connector (generally not found in many laptops)

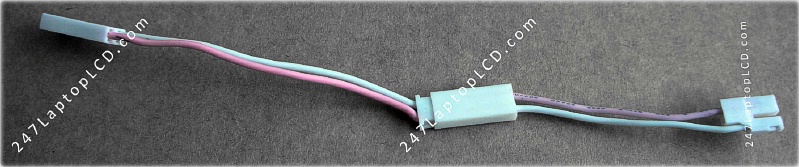

Figure 3. Attaching adapter to convert symmetrical connection to asymetrical connection.

Figure 4. Resulting asymmetrical lamp connection. Please make sure that the connections are tightly secured to avoid electrical surge.
