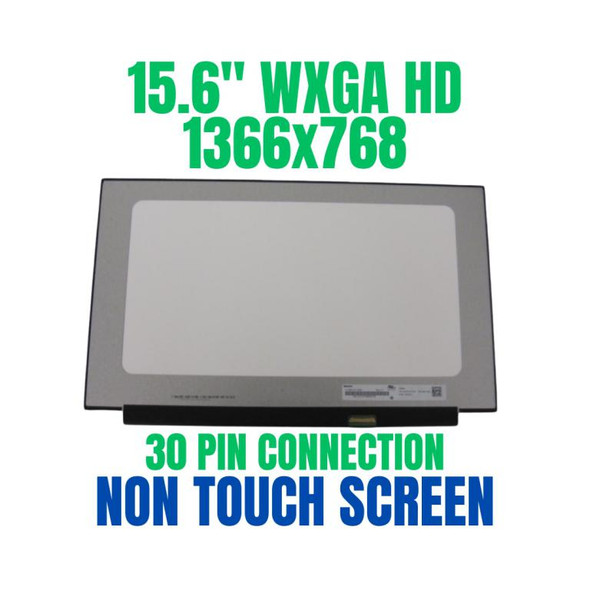

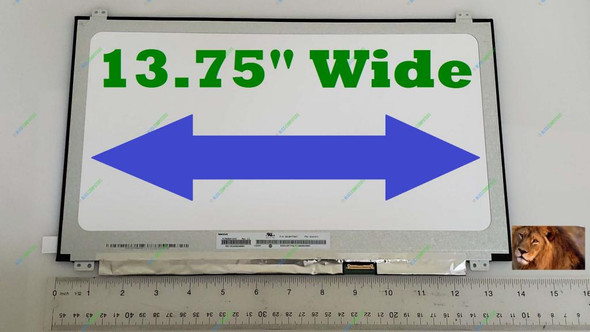

15.6" HD 1366x768 LCD Screen Display Panel REPLACEMENT Lenovo FRU 01AY471 01AY470

Ask a Question

Request Bulk Quote Are you tax exempt? Display Tech Support Shipping from USA

SKU:
B279287-1147
Condition:
New
Availability:
Yes
Shipping:
Real-time Shipping Charges   About   International Shipping
Looking for Local Pick-Up - Print this Pick-Up Slip
  • 15.6" HD 1366x768 LCD Screen Display Panel Replacement for Lenovo FRU 01AY471 01AY470
  • 15.6" HD 1366x768 LCD Screen Display Panel Replacement for Lenovo FRU 01AY471 01AY470
  • 15.6" HD 1366x768 LCD Screen Display Panel Replacement for Lenovo FRU 01AY471 01AY470
  • 15.6" HD 1366x768 LCD Screen Display Panel Replacement for Lenovo FRU 01AY471 01AY470
  • 15.6" HD 1366x768 LCD Screen Display Panel Replacement for Lenovo FRU 01AY471 01AY470
  • 15.6" HD 1366x768 LCD Screen Display Panel Replacement for Lenovo FRU 01AY471 01AY470
Toolkit Coupon
$70.00
International Shipping Money Back Guarantee Free Domestic Shipping

Description

.15.6" HD 1366x768 LCD Screen Display Panel REPLACEMENT Lenovo FRU 01AY471 01AY470

You must verify following information in checkout note to enable order processing.

    1. We need your laptop model and serial number / service tag to match up screen technical information.

    2.Listed is Non Touch 30 pin screen.

    3.Listed screen is widely used to make Touch Screen Assembly.

    4.You are not paying us for Touch Screen Assembly.
The order is not processed unless requested information has been received.

  • Brand: Non Touch Screen
  • Size: 15.6
  • Resolution: WXGA HD
  • Pixels: 1366 x 768
  • Type: LED
  • Backlight Lamp: DIODE
  • Connector: EDP
  • Pin Connection: 30 Pins
  • Side: Bottom Right
  • Frame: Narrow Frame
  • Finish: Matte/Glossy write in checkout note. Avoid RMA Fees.
  • Condition: NEW
  • Refresh Rate: 60Hz
  • Commodity: Non Touch Screen
  • Technology: Non Touch
  • Category: Non Touch Screen
  • Dead Pixel Policy: In Accordance with ISO 13406-2 norm.
  • Source: Factory Direct
  • Packaging: Fragile Customized Package
  • Compatibility: 101% OEM Compatible
N156BGA-EA3 LENOVO 01AY471 SD10M77667 Lenovo SD10M77667 N156BGA-EA3 LENOVO 01AY471 SD10M77667 Lenovo SD10M77667
N156BGA-EA3 LENOVO 01AY471 SD10M77667 Lenovo SD10M77667 N156BGA-EA3 LENOVO 01AY471 SD10M77667 Lenovo SD10M77667
LENOVO E590 (Type 20NB, 20NC) Laptop (ThinkPad) - Type 20NC
Sold product is 30Pin bottom right thin frame LCD. It is not regular 40 Pin LCD. In past orders customers were getting confused about pin configuration and they think they are buying standard 40 Pin LCD. So again pay attention to pin configurations. This is 30 pin EDP Connection LCD. This is not standard 40 Pin LCD and if you trying to replace this one with standard 40 Pin LCD it will not work.

Title - 01AY471, 01AY470

View AllClose

Warranty Information

The product of 15.6" HD 1366x768 LCD Screen Display Panel REPLACEMENT Lenovo FRU 01AY471 01AY470 is covered by 30-day replacement warranty. For details, please refer to our warranty page.
